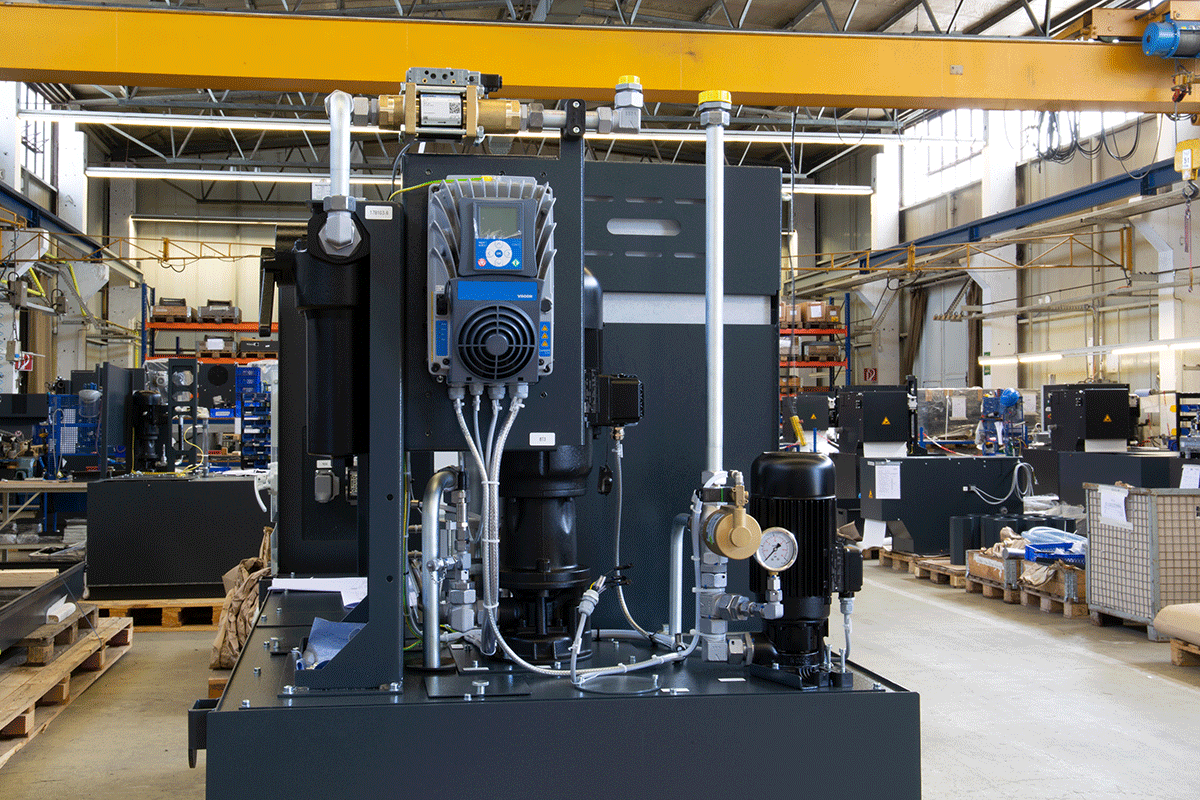

At the heart of our coolant systems is the filter attachment (TMF). This can be combined with different container sizes and forms the basis for your process. It is then possible to select the supply pumps and additional options such as valves, double switching filters, coolers, etc. based on the Interlit modular system. The next step is an interface design, mechanical and electrical, according to customer requirement and your coolant system is complete.

Small and powerful – Our TMF300

The Interlit All-Rounder! The geometric optimization of the filter unit leads to increased dynamic pressure. This allows us to use standard heavy fleeces of up to 150g, which we seal securely at the sides. The best filtration results are thus achieved at high throughput rates. Whether floating chips from aluminum machining or very fine cast iron particles, the TMF300 offers a reliable filter process. All moving parts are easily accessible through maintenance openings, and even the fleece can be changed with minimal effort.

Filter capacity  up to 300l/min.
Filter medium  needle-punched fleece (150g)
Dimensions  865 x 715 x 708 mm (overall LxWxH)

El. equipment  400V, 50Hz (special voltages possible)

Would you like a little more? – Our TMF600

The same principle as our TMF300, just one size bigger! Even higher dynamic pressure and an increased filter surface results in higher throughput and even finer filter results.

Filter capacity  up to 600l/min.
Filter medium  needle-punched fleece (150g)
Dimensions 1363 x 802 x 868 mm (overall LxWxH)
El. equipment 400V, 50Hz (special voltages possible)

Still not enough? – Our TMF-S

Very fine chips such as those produced by grinding can lead to problems in the filter process. Not with our TMF-S. The technology of our TMF is expanded and supplemented by a suction pump. The generated negative pressure leads to a higher throughput at the filter fleece. The resulting filter cake causes microfiltration which reliably separates the smallest particles.

Filter capacity up to 600l/min. (depending on pump design)
Filter medium  needle-punch fleece (150g)
Dimensions  1386 x 716 x 874 mm (overall LxWxH)
El. equipment  400V, 50Hz (special voltages possible)

Filter fleece? No, thanks! – Our TMF-G

Our TMF-G uses a mesh drum as filter element. Your advantage: No fleece, no fleece consumption, no fleece replacement! The filter surface of the mesh drum is cleaned by a rinsing nozzle via interval control. Scraper elements on the bottom of the housing remove the dirt particles to ensure continuous process.

Filter capacity up to 300l/min.
Filter medium  mesh drum
Dimensions  1363 x 610 x 868 mm (overall LxWxH)
El. equipment  400V, 50Hz (special voltages possible)

The basis of a high-performance coolant system is a high-performance filter attachment. We meet this requirement 100 % with our patented TMF drum through-flow filter. The TMF is characterised by its compact dimensions, high throughput, safe discharge of floating chips, good accessibility, rapid fleece change and best filtration quality thanks to its patented side sealing technology.

Standard clean tanks holding from 600 litres to 5,000 litres enable us to cover customer-specific volumes. All tanks are already prepared for use with various modular components. Standard cleaning apertures and optional manhole covers make cleaning the tanks even easier.

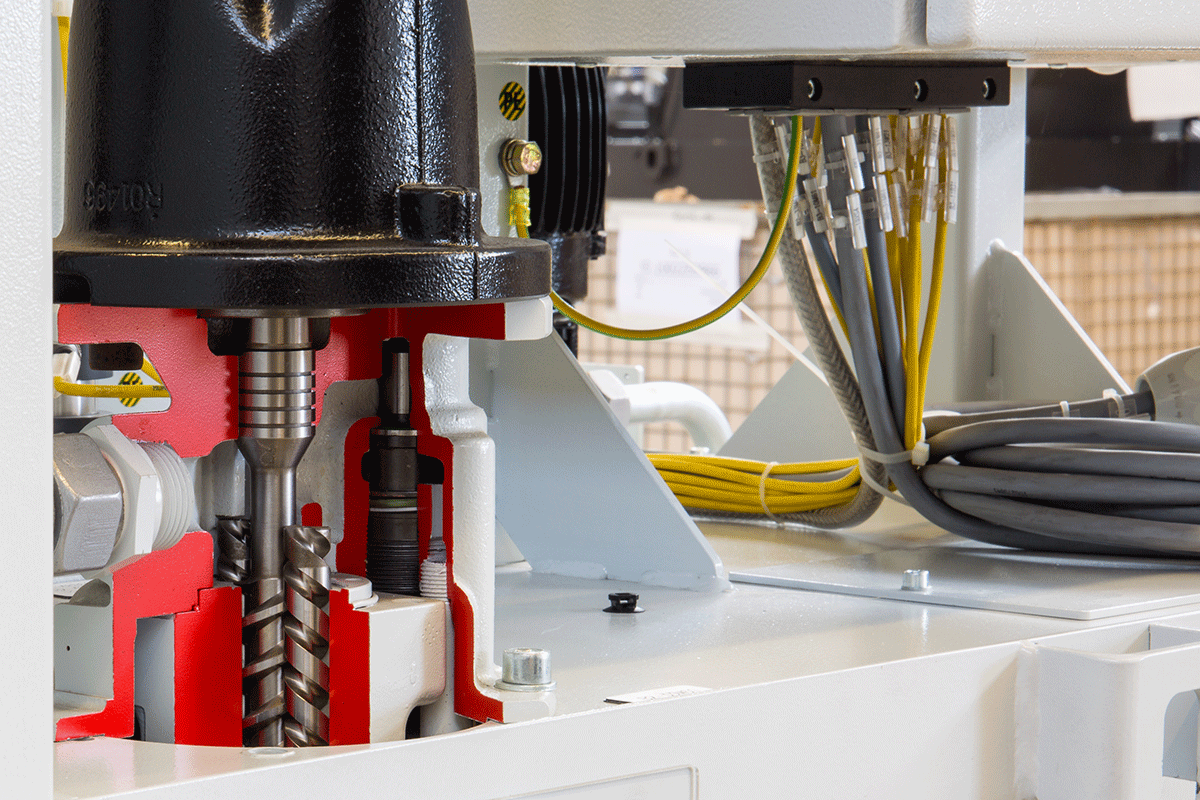

Low- and high-pressure pumps from market-leading pump manufacturers allow the processing machine to be supplied as required. Our patented high-pressure pumps in the RSP range play a special role here. Based on the Brinkmann BFS range, the RSP pump enables a very compact design due to its integrated pressure relief valve (PRV). Combined with the latest frequency converter technology, achieving optimum supply performance specific to the machining task is possible with minimum energy consumption.

Communication has a decisive influence on the performance of the machine tool and coolant system. Whether switch- or control cabinet, whether Siemens or Mitsubishi controller, whether with touch screen or without, whether bus or conventional communication – our programmers and in-house switch cabinet designers are capable of meeting (almost) every customer communication requirement.
